Eclair | Acelane bikes

Road bike
origin

EXPLORE ECLAIR

Our only rim brakes supremacy for road performance, Eclair hit the right spot for you who need an affordable race bike. For criterium course, in velodrome track, or you just want to bombing fast on the road.

It does align with the name, Eclair means "lighting" in French

INTENDED USE

All round

ROAD

ENDURANCE

CYCLOCROSS

FRAME SET START FROM
Rp 14.000.000

US$ 920

Build and made in Indonesia

50% deposit required

Custom geometry available

Custom paint available

Full bike build available

Made by order (±3 month)

MODEL AE-02

FRAME SET START FROM $980
Rp 14.000.000

BUILD OPTIONS

Purest road machine—

for everyone

Fine tune geometry

Road performance geometry

Fine tune geometry

Road performance geometry

Modular Cable Management system

Any groupset, any setup

Modular Cable Management system

Any groupset, any setup

Ample tire clearance

Up to 700x32/35 width

Ample tire clearance

Up to 700x32/35 width

Specification

Tubing

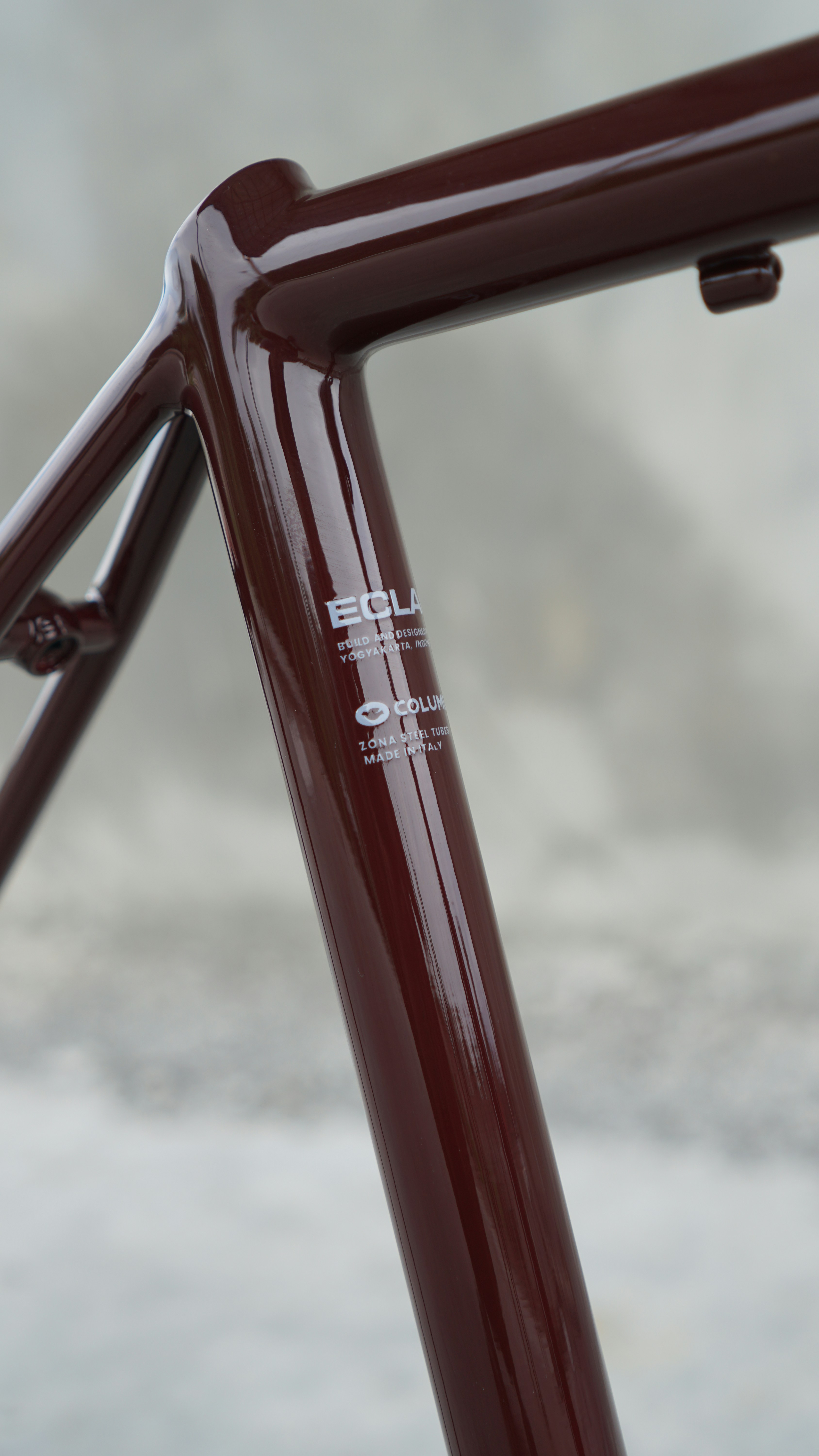

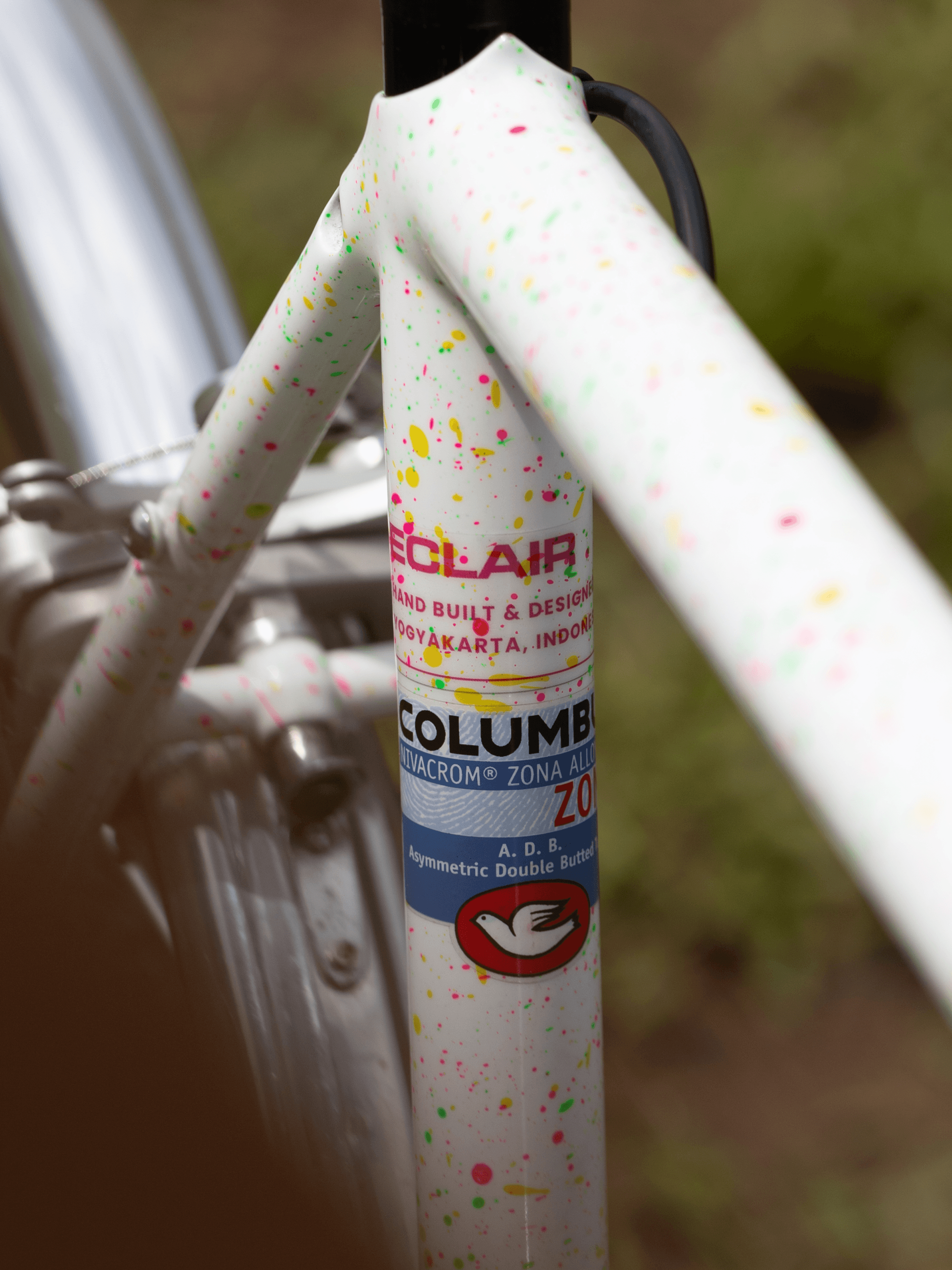

Columbus Zona steel tube set (base model)

Fork

Full carbon T700, tapered steer tube, ISO 4210 tested

Cable routing

External routing, mechanical and electronic (wired/wireless) compatible

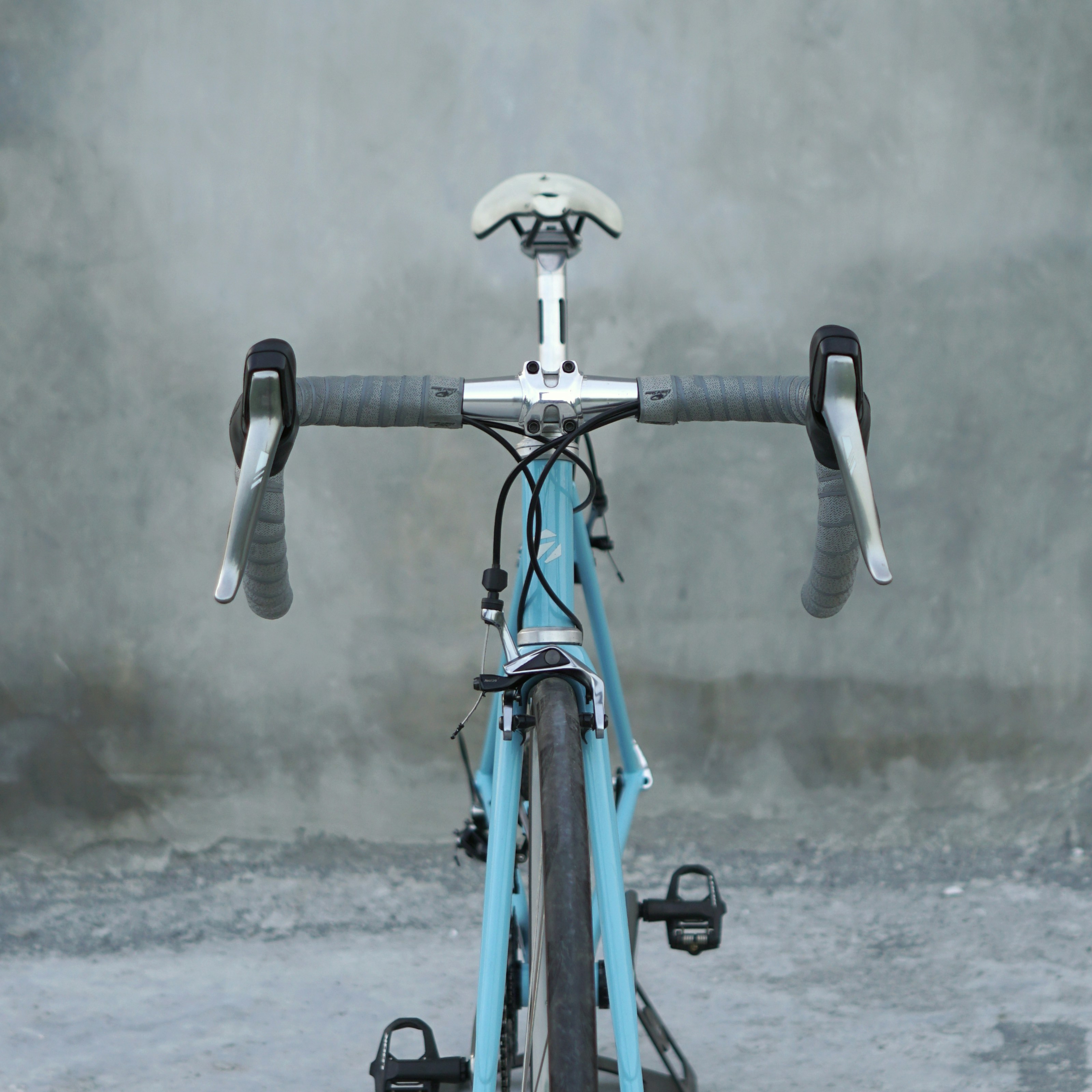

Brakes

Rim brakes single pivot

Seat post

⌀27.2mm outer diameter

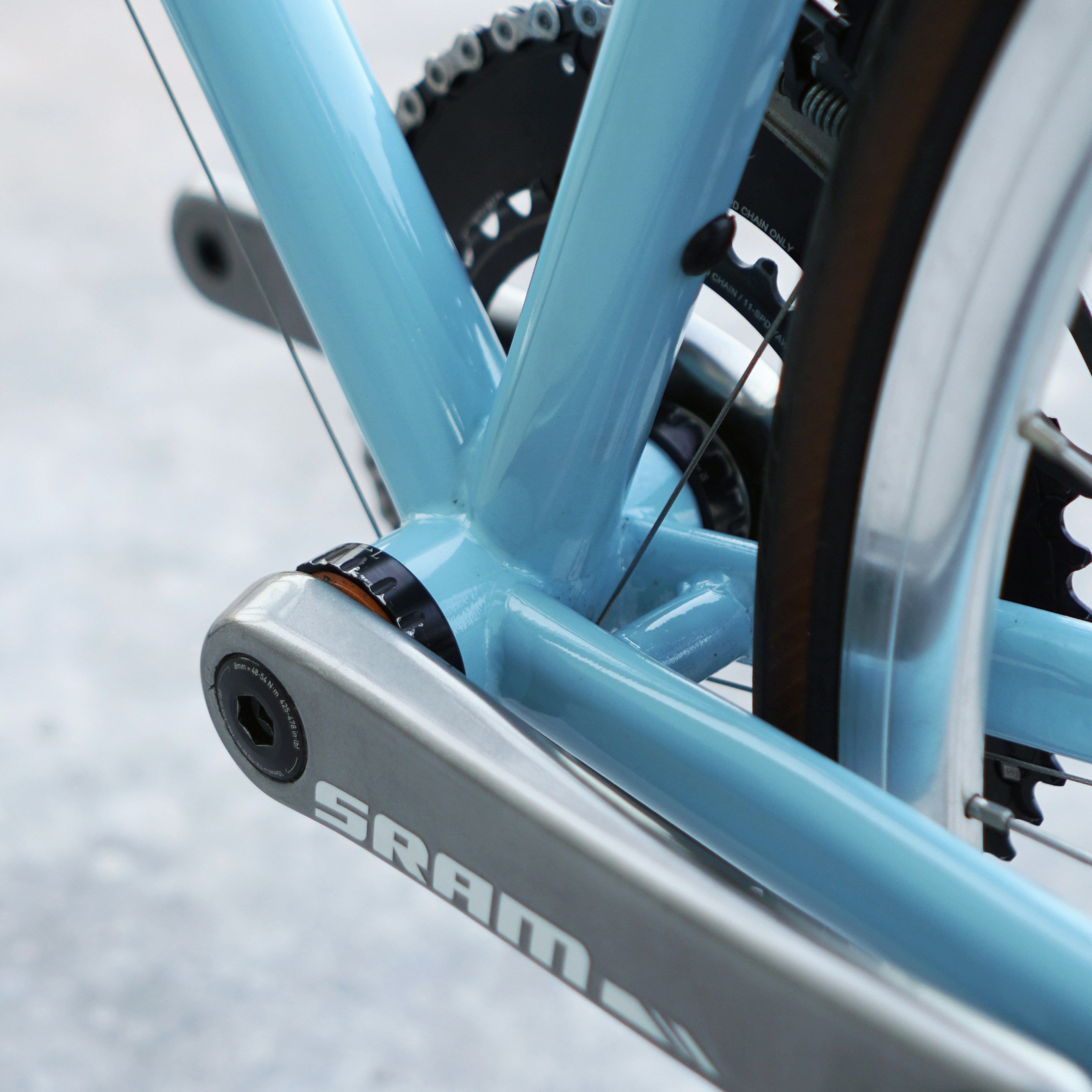

Bottom Bracket

BSA/T47 options, 68mm shell width, external bearing

Headset bearing

ZS44/EC44 (tapered) or EC34/EC34 option

Max tyres

up to 700x32/35 (long reach caliper required, without fender)

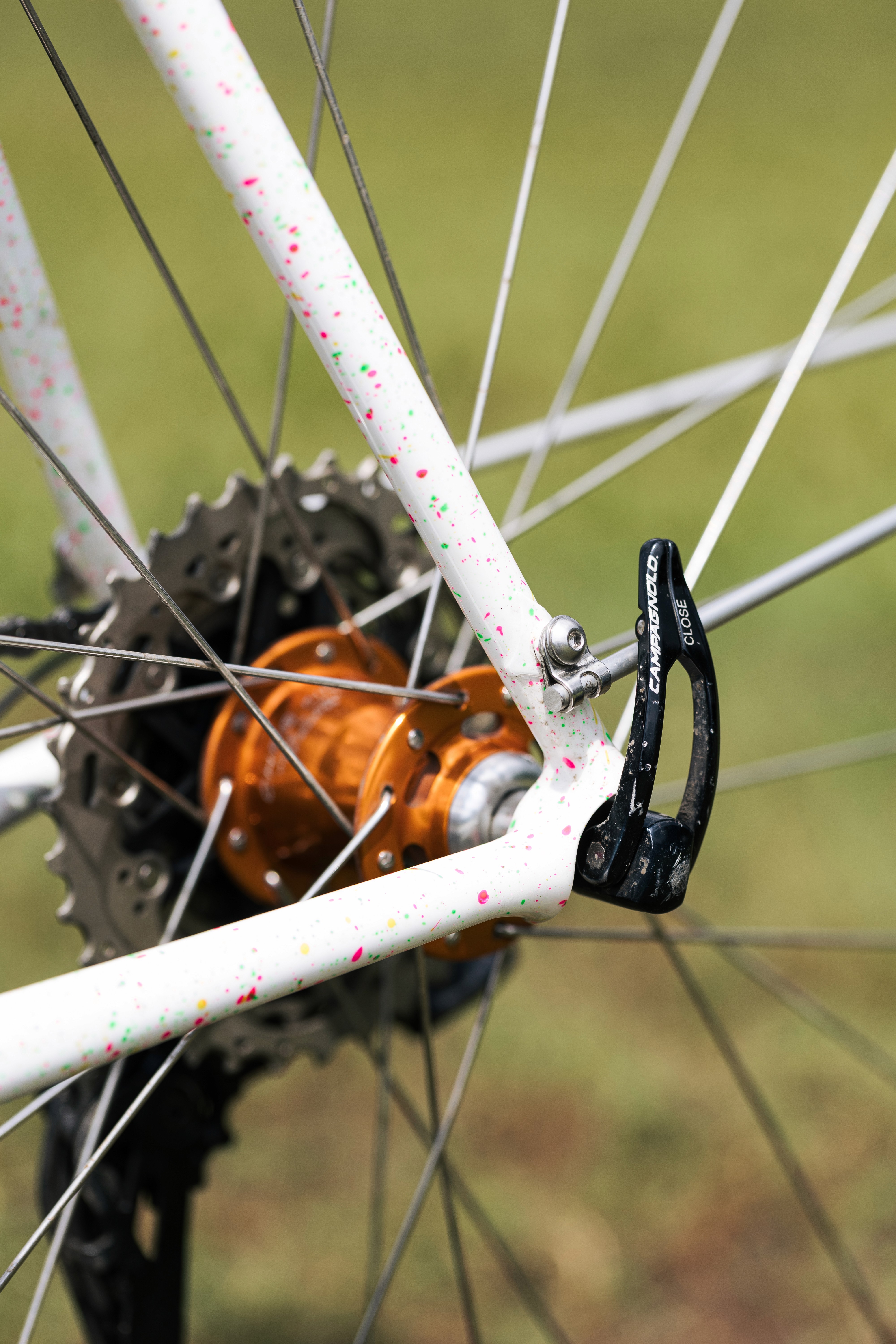

Wheel OLD

Front 9x100mm, Rear 10x130mm, quick release

Max chainring size

2x setup, 53-36T

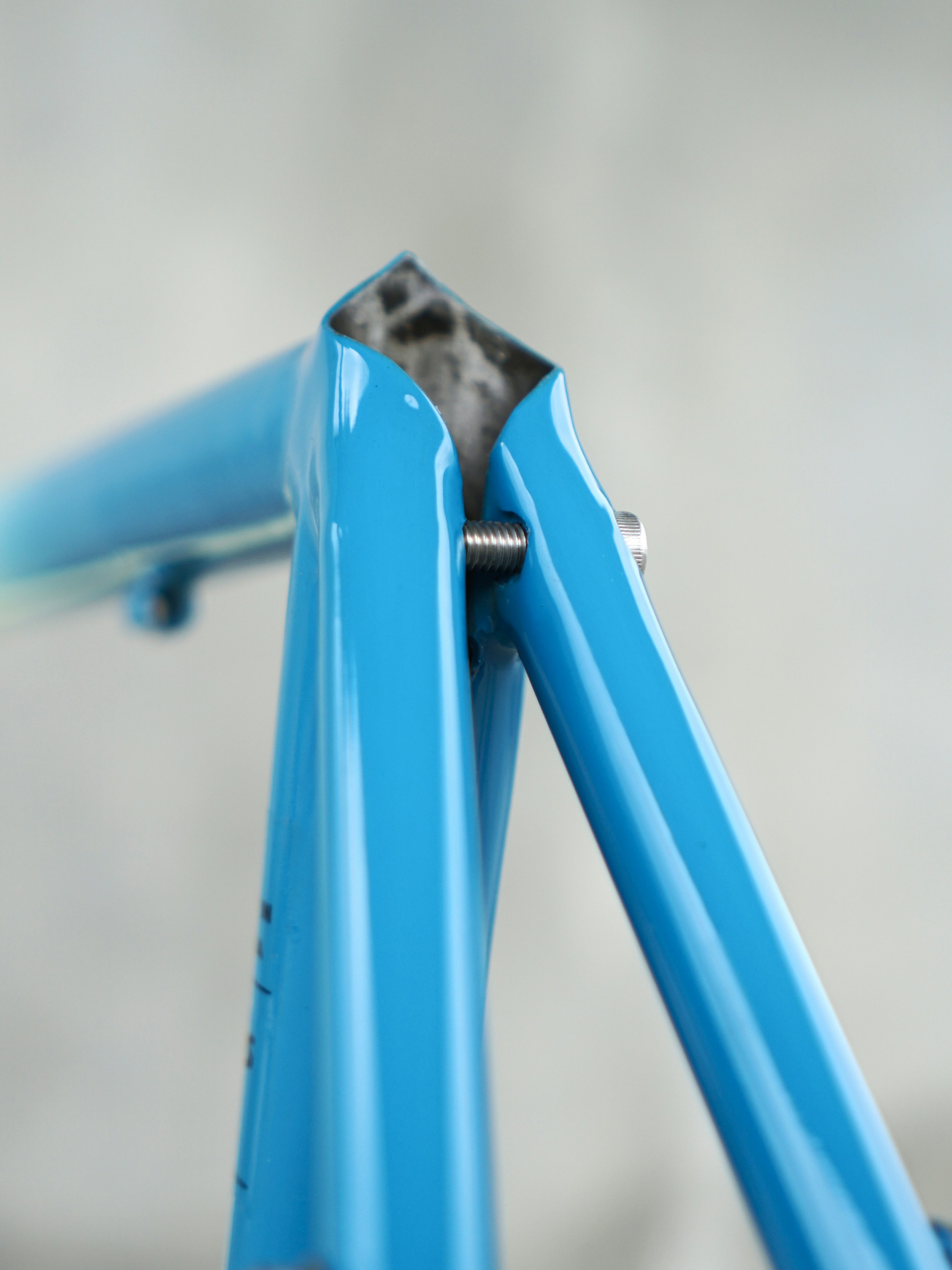

Welding process

brass fillet brazing

Estimated weight

±1700gr, Columbus Zona, size S frame only, unpainted

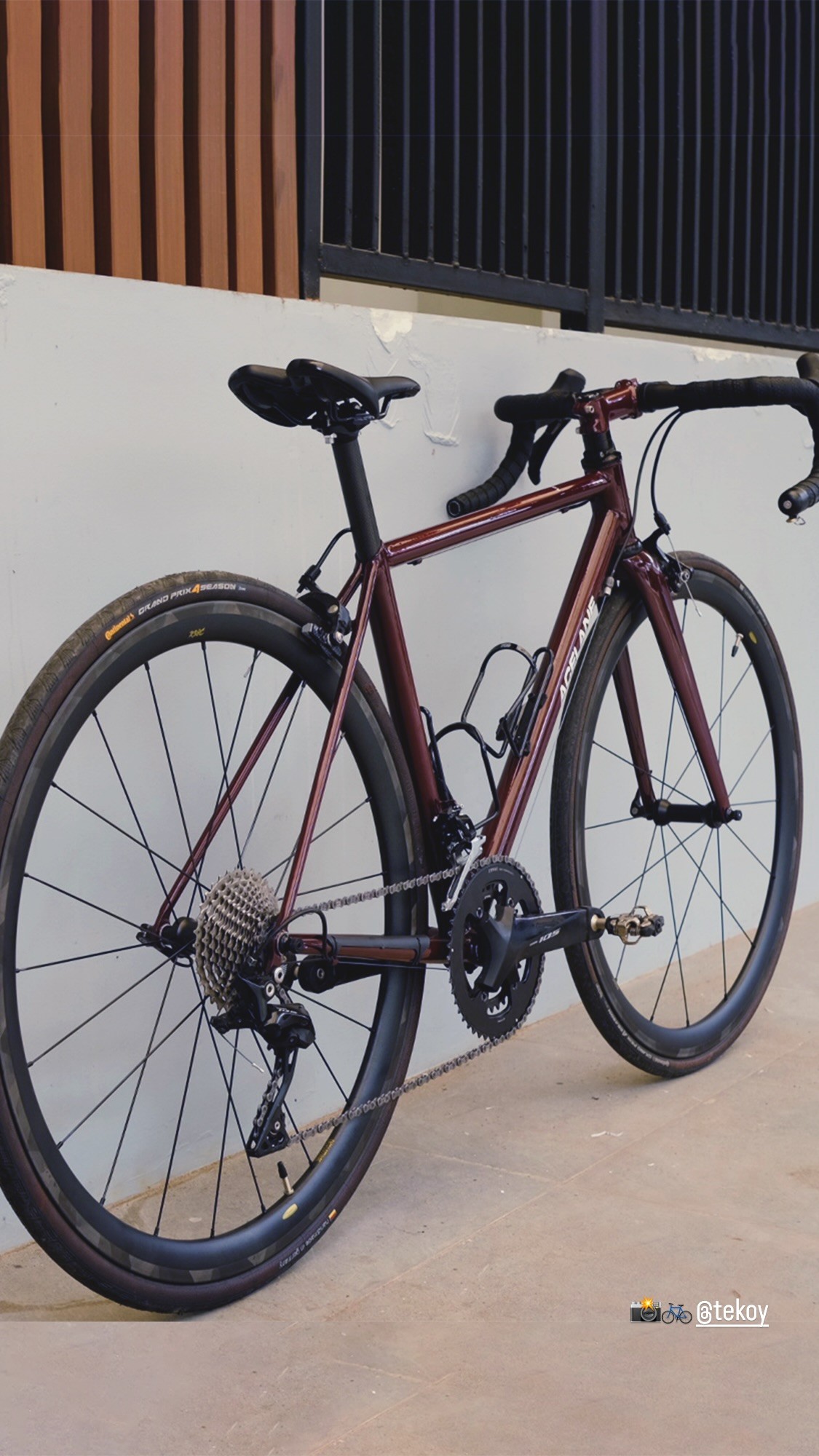

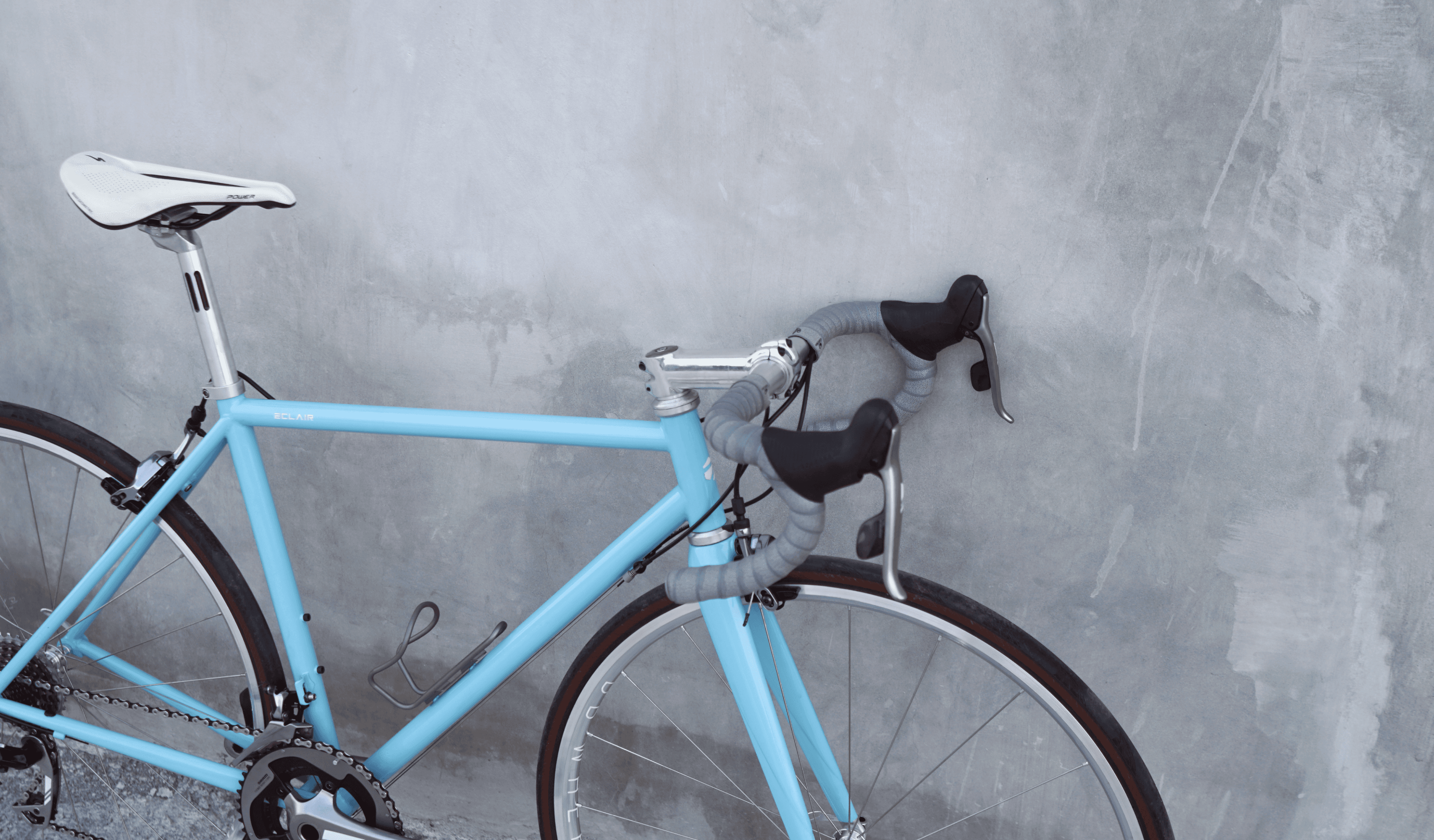

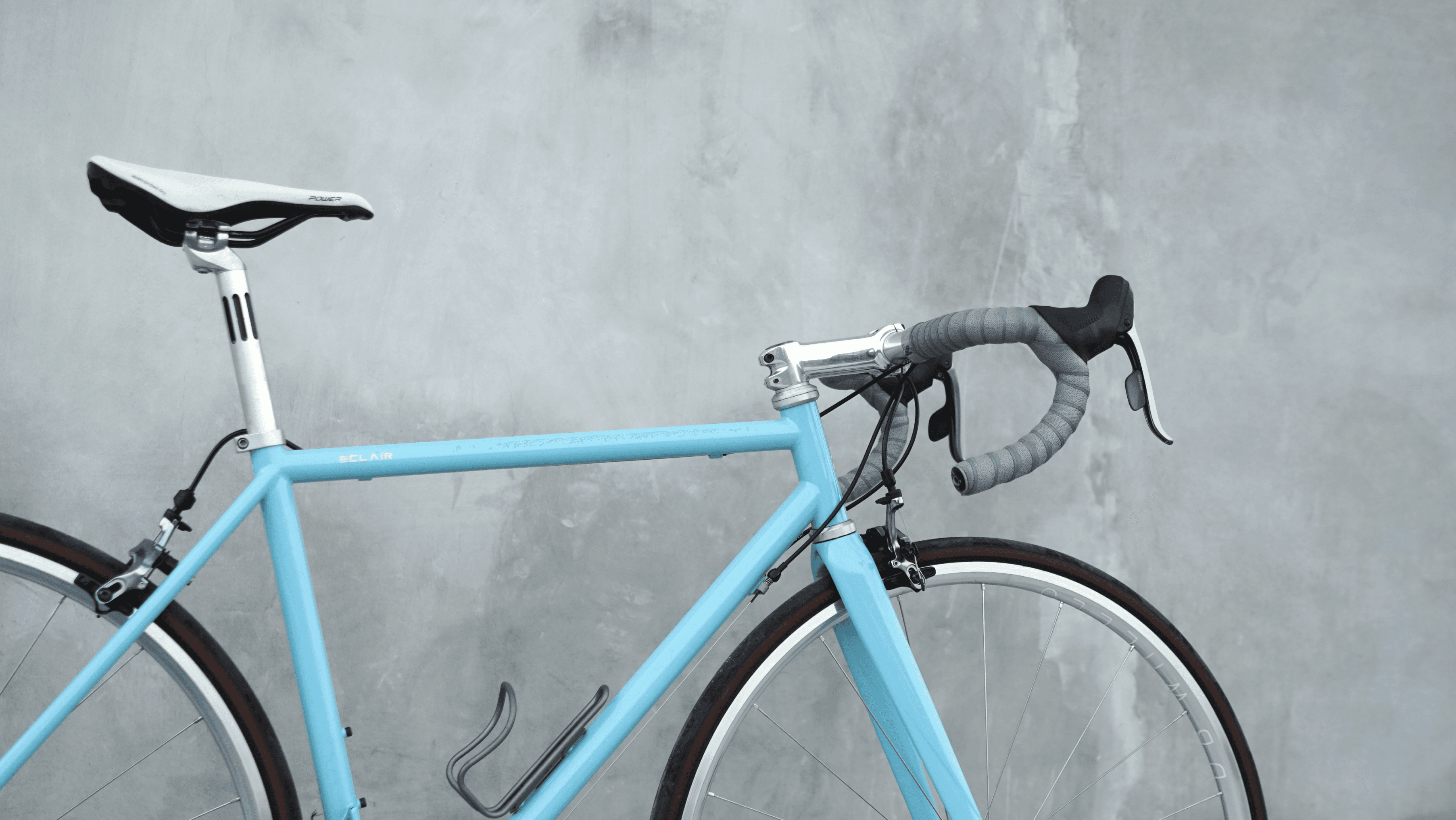

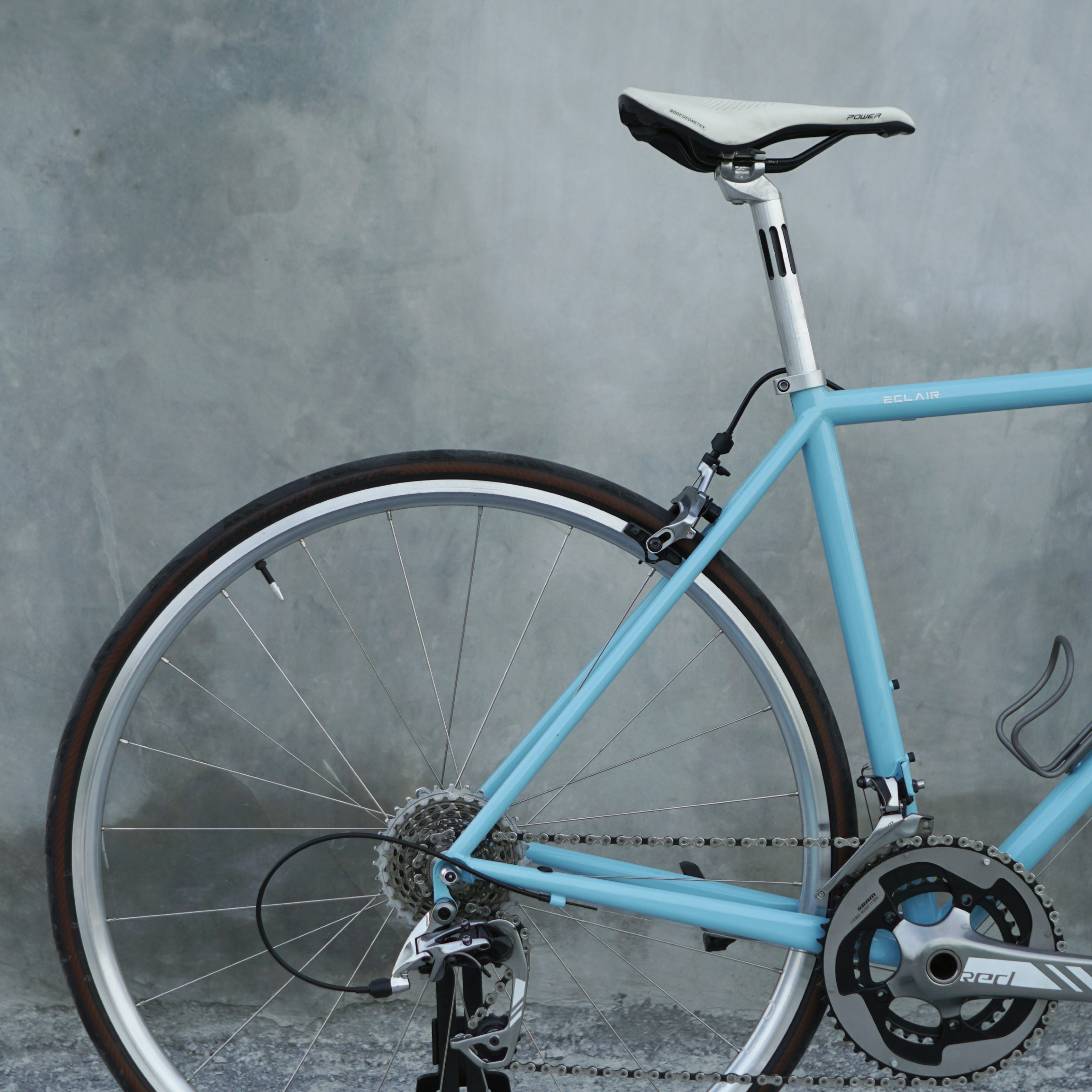

Classic rim brake with

oversize tubing for
today performance

See more photos in Unsplash ->

Stock size guide

ROAD Geometry

Agile handling and optimized to ride on low and drops

XS Height: 149-162 cm Inseam: 69-75cm

S Height: 157-171 cm Inseam: 76-83cm

M Height: 165-178 cm Inseam: 77-84cm

L Height: 170-180 cm Inseam: 79-85cm

XL Height: 175-190cm Inseam: 84-90cm

Detailed size chart table ->

FREE CUSTOM GEOMETRY

Bike fitting in advance for more optimal custom geometry is recommended, some data measurement may required

SPECIAL OFFER FOR FULL BIKE BUILD

Just get ride, soon

We help to build your full bike too. From components, accessories and budget that fit your desired specs and riding needs from renowned brand.

Don't hesitate to contact us about your custom build details

Our curated brands ->

Details and upgrades

Standards in every frame without additional charge

Acelane road rim brake carbon fork, single pivot rim brakes, tapered steer tube, full carbon T700, 45mm rake, max 700x35 tyre
Mechanical/electronic (Di2/AXS/EPS) drivetrain compatible ZS44/EC44 Steel sealed bearing headset, carbon fork compression nut included

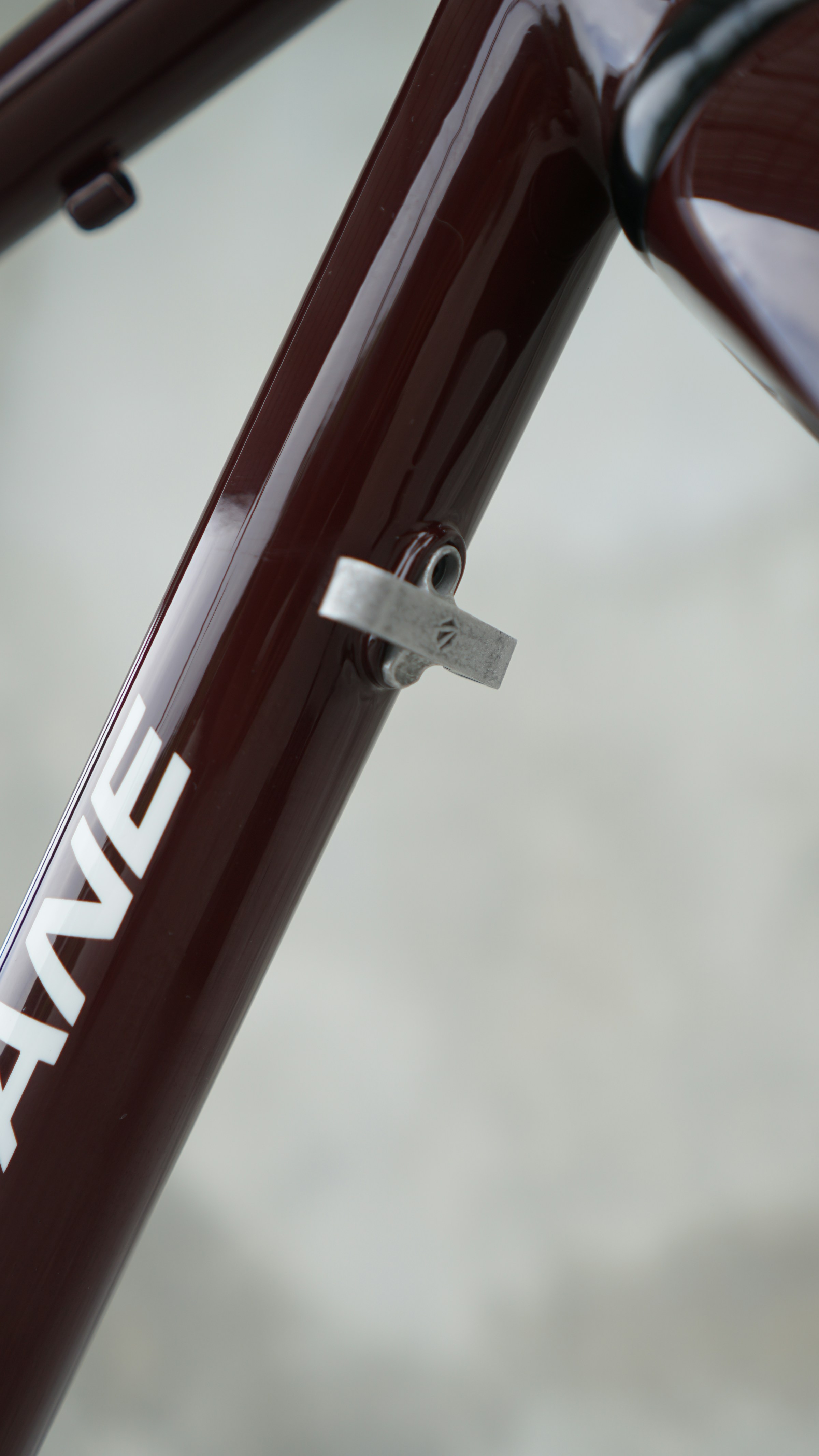

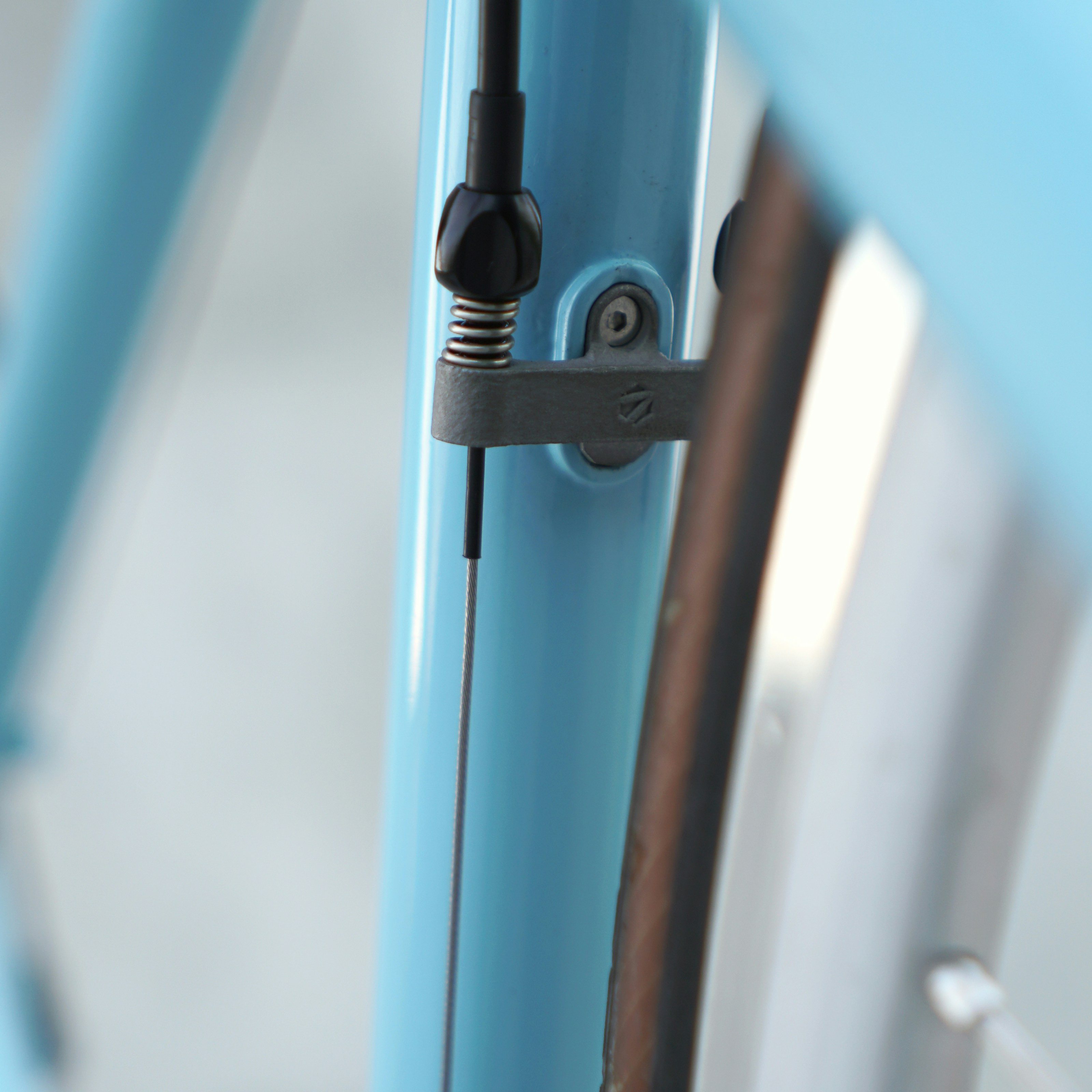

2x Acelane 3D printed alloy external cable inlays stopper (for 1x and
2x mechanical drivetrain)
2x M5x0.8 barrel adjuster
1x Seat post clamp

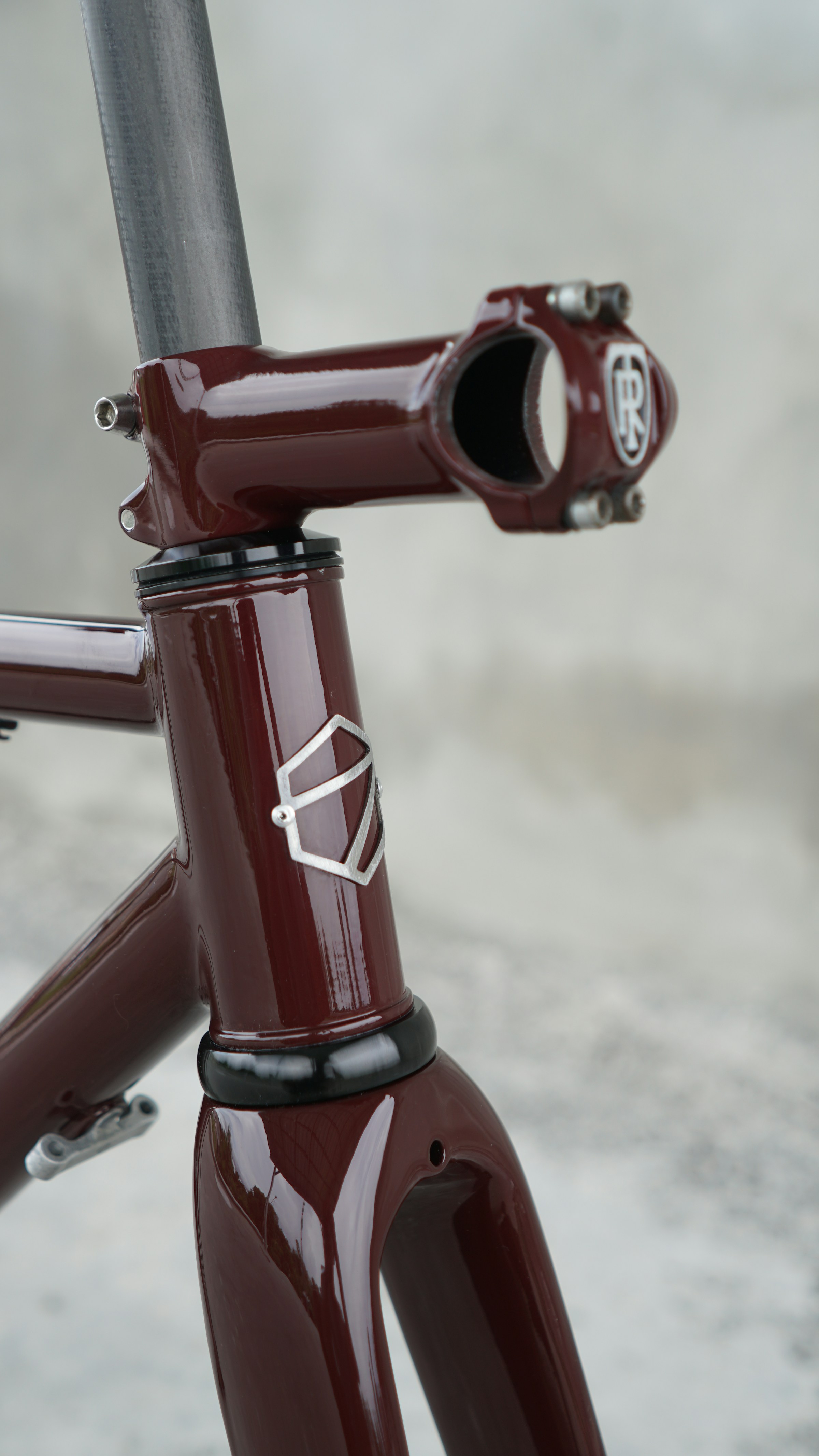

1x Stainless steel head badge, pre-installed
Minimal paint scheme
1 years fork warranty, Life time support, and 180 days Frame Crash Protection for 30% off frames repair and tubing replacement/rebuild (repaint excluded)

Upgrade parts and add-ons with additional charges*

Custom paint in custom prices

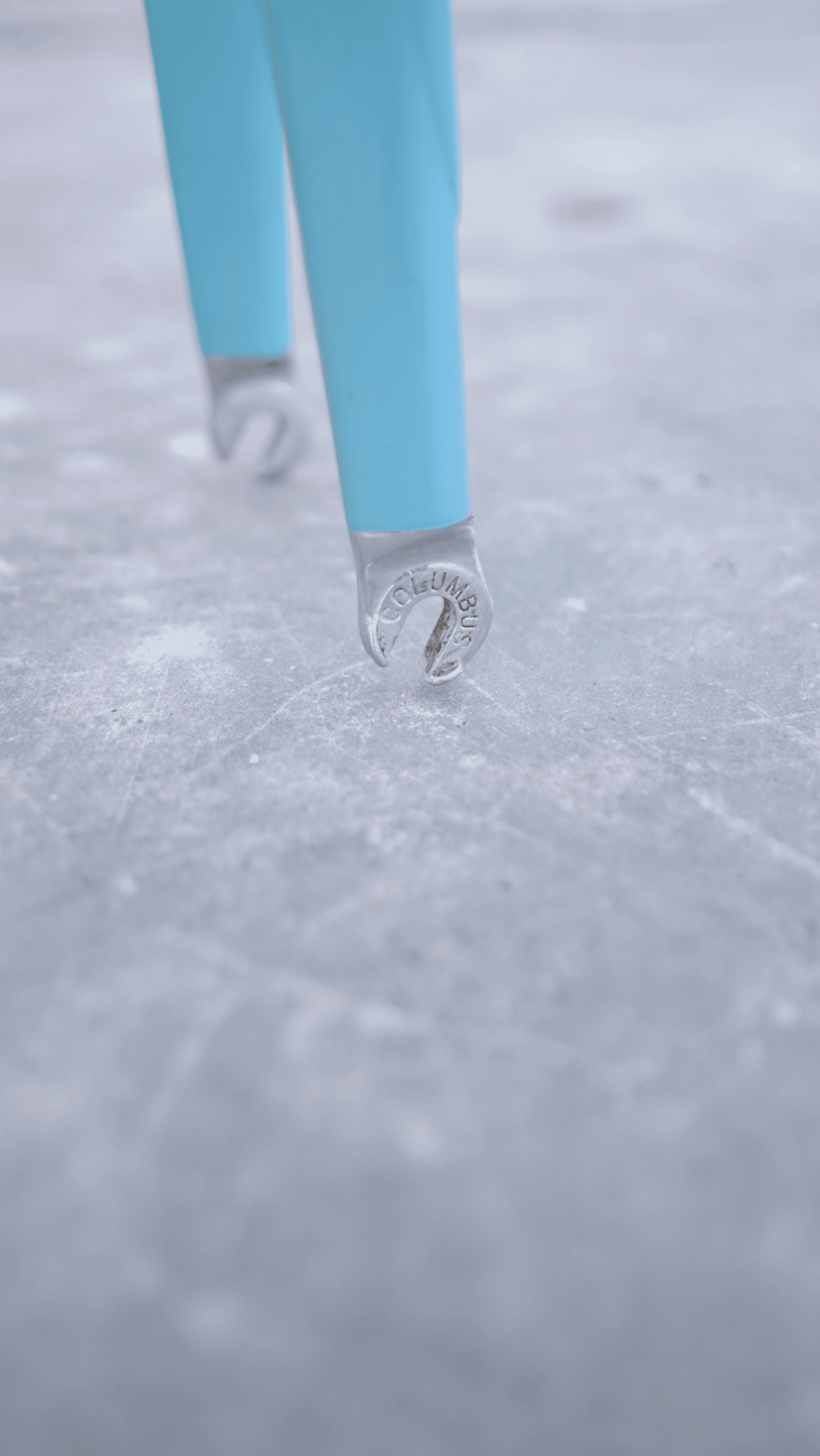

Columbus Futura SL caliper, 100mm quick release axle, straight ⌀28.6 carbon fork, 700x28 max tyre**
Chris King/Cane Creek headset

NOTES:
*) Please contact us for detail price and availability
**) Columbus fork comes with 5 year warranty

Minimal color paint included

+1000 RAL swatches option are ready to choose, gloss finish with black/white frame decals. Raw unpainted gloss finish exclusive for stainless build only
