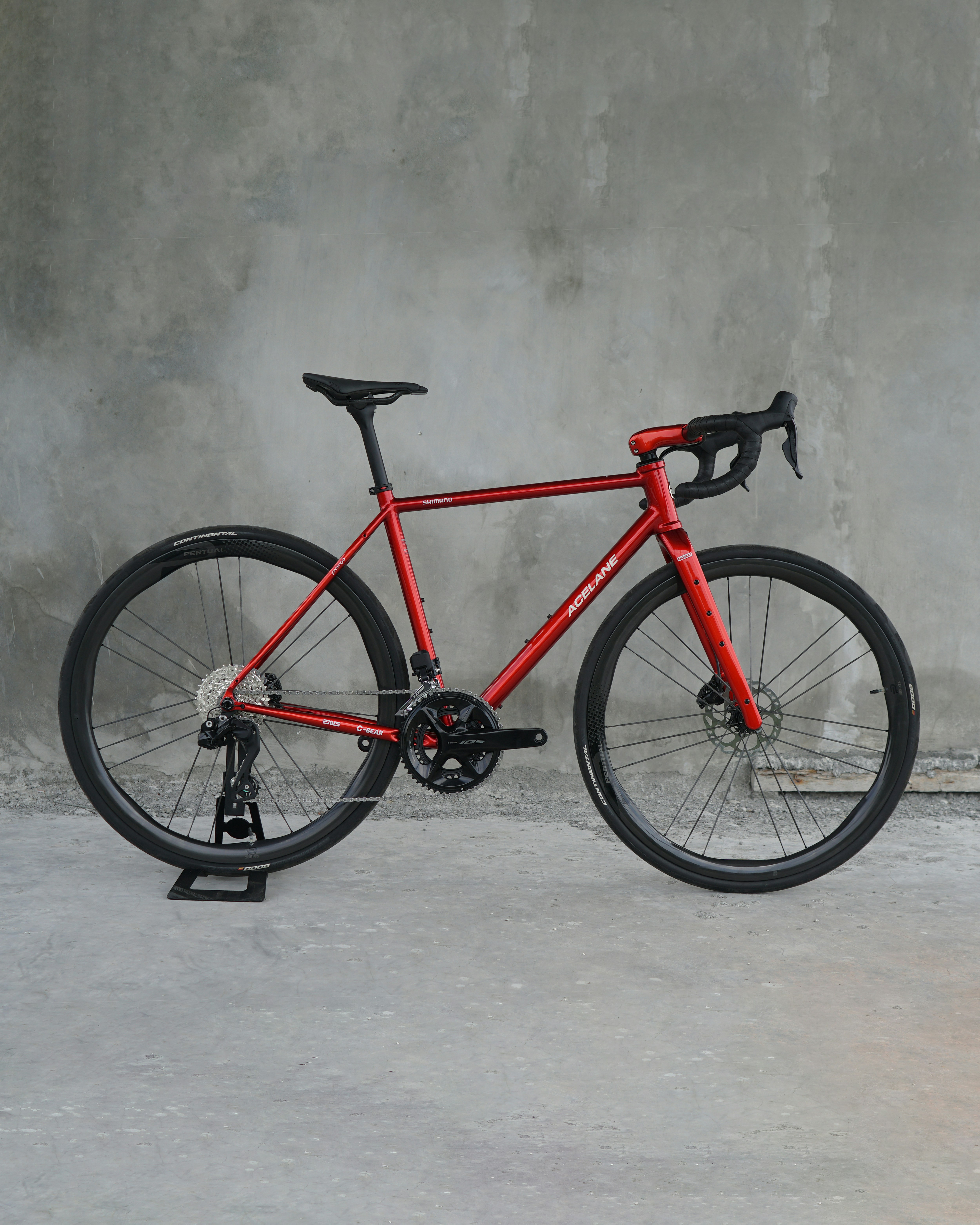

EXPLORE REIZIGER
->
Our most versatile disc brakes bike, generous mounting point, plenty tire clearance, paired with enhanced endurance geometry and selected material makes Reiziger's can be rode as fast and comfort everywhere, anytime.
INTENDED USE
Sportive
ROAD
GRAVEL/ADVENTURE
SUPER COMMUTER
Ride further and better—everywhere
Fast endurance geometry
combined with curated oversize tubing to define the exceptional rides quality
Curated from best performance yet durable bicycle tubing
Mainly we build with Columbus tubing that already proven by many legendary builder and cyclist around the globe. Size of diameter, butted profile, and shape that select carefully to suit your preferences for unmatched fit and ride feels

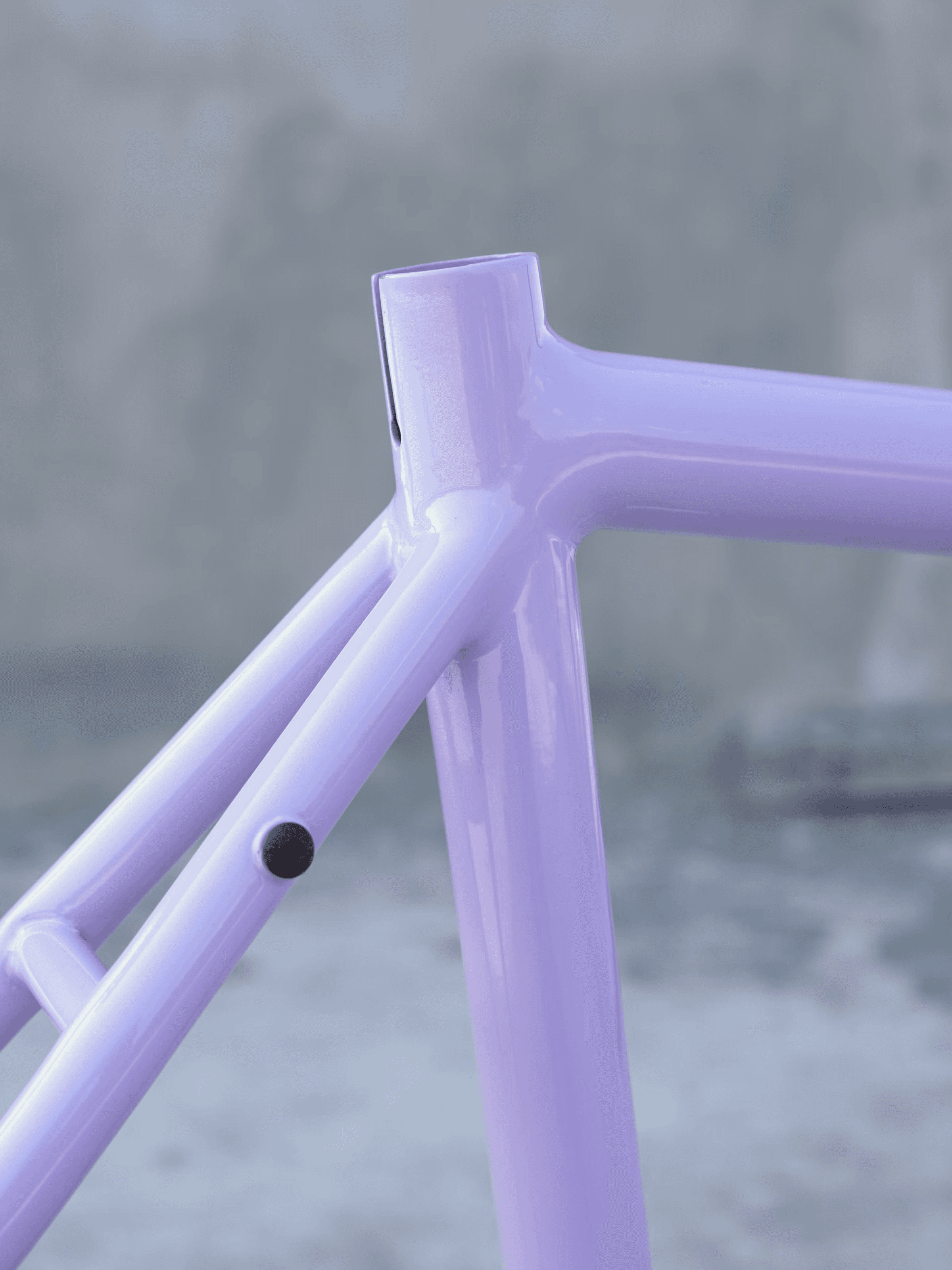

Steel and stainless bikes are hand build in Indonesia. Brazed ons and frame parts are designed and manufactured in house
ALSO OUR TRUSTED TUBES MANUFACTURER
Proven endurance geometry
Our stock size is designed with accessibility in mind, comes with shorter frame reach and relatively higher stack and head tube—this tend to upright relax zone and more flexible to tune the fit with your preferences
You can use slightly longer yet lower stem with less spacer possible. More predictable handling and gain more control closer to center of gravity of your bikes
It might not for everyone but aesthetic wise, who doesn't like the looks of long stem?
BEEN TESTED AND RACE ON
2024
Bentang Jawa
RODE WITH T.ISLAHUDIN

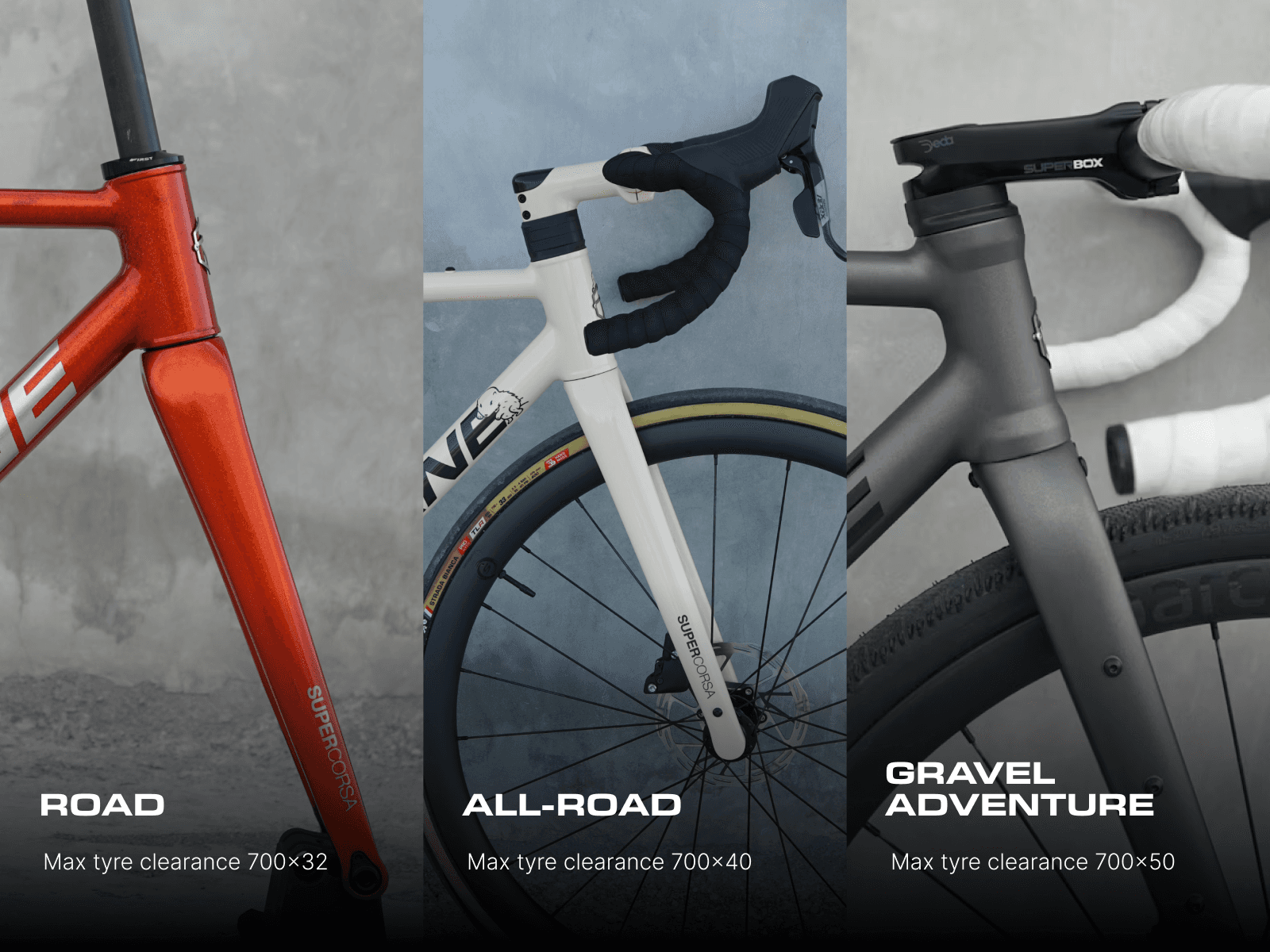

Fork that designed for your intended ride and style

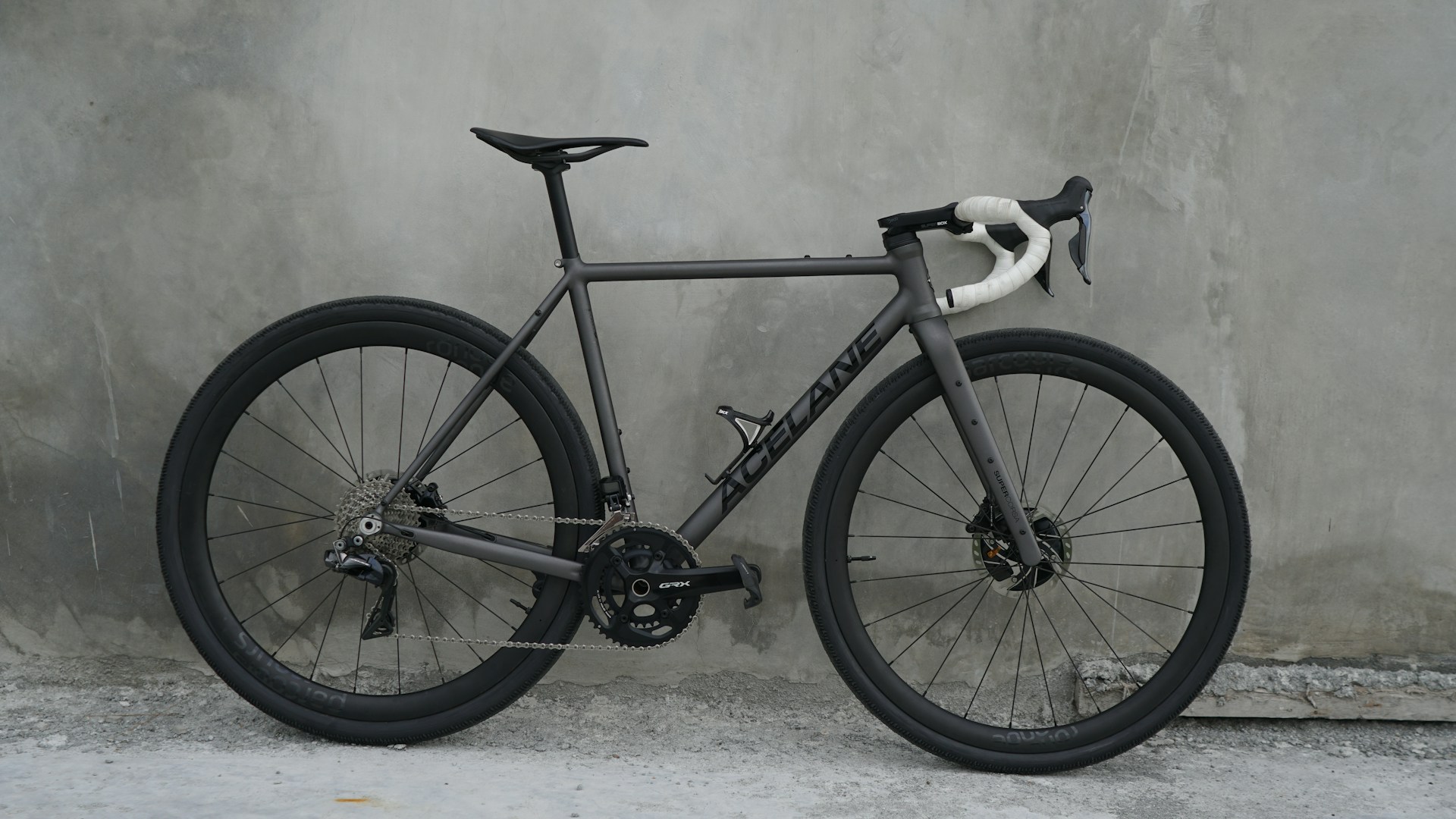

Depends on your need, Reiziger can be build as road bike, all road, or adventure ready gravel bikes. And we offer 3 different fork options for that. Our carbon forks has various configuration, from standard to integrated cable routing options, front hub dynamo compatible (Gravel adventure model only) and side/fender mount option
So choose it wisely because it will affect and dictate the tyre clearance and bikes behave
Specification
Tubing
Columbus Zona steel tubing (steel base model)
Fork
Full carbon T700, tapered steer tube, fender mount, ISO 4210 tested
Cable routing options
Semi internal or full hidden integrated, mechanical and electronic (wired/wireless) compatible
Brakes
Flat mount disc brakes, ⌀140mm rear/⌀160mm front
Seat post option
⌀27.2mm/⌀31.6 diameter (dropper post compatible)
Headset bearing
IS52/IS52 (fully internal) or ZS44/EC44 (semi-internal)
Bottom Bracket
T47 threaded 86mm shell width, inboard bearing
Max tyres options
700x32 or 700x40 or 700x50 (29x2.0", 1x chainring only)
Wheels OLD
Front 12x100mm, Rear 12x142mm, Thru axle
Chainring size
Up to 52-36T (2x crankset) and 40T (1x crankset)
Welding process
fillet brazing (steel and stainless)/ TIG (titanium)
Dropouts
UDH and Transmission drivetrain compatible
Estimated weight
±1890gr, size S frame only, steel, unpainted
Stock size guide
Enhanced Endurance Geometry
Comfort in the hood/top for longer rides and fast enough in drops
48
150-162cm
50
158-170cm
52
168-178cm
54
175-187cm
55
175-187cm
57
185-195cm
Detailed frame geometry ->
FREE CUSTOM GEOMETRY
SPECIAL OFFER FOR FULL BIKE BUILD
Just get ride, soon
Excited to ride your bike sooner in your local trails?
Worry not! we will help build yours all down to the components, parts, accessories and budget that fit your desired specs and riding needs from renowned brand.
Our curated brand list ->
Details and frame upgrades
Standards in every frame without additional charge

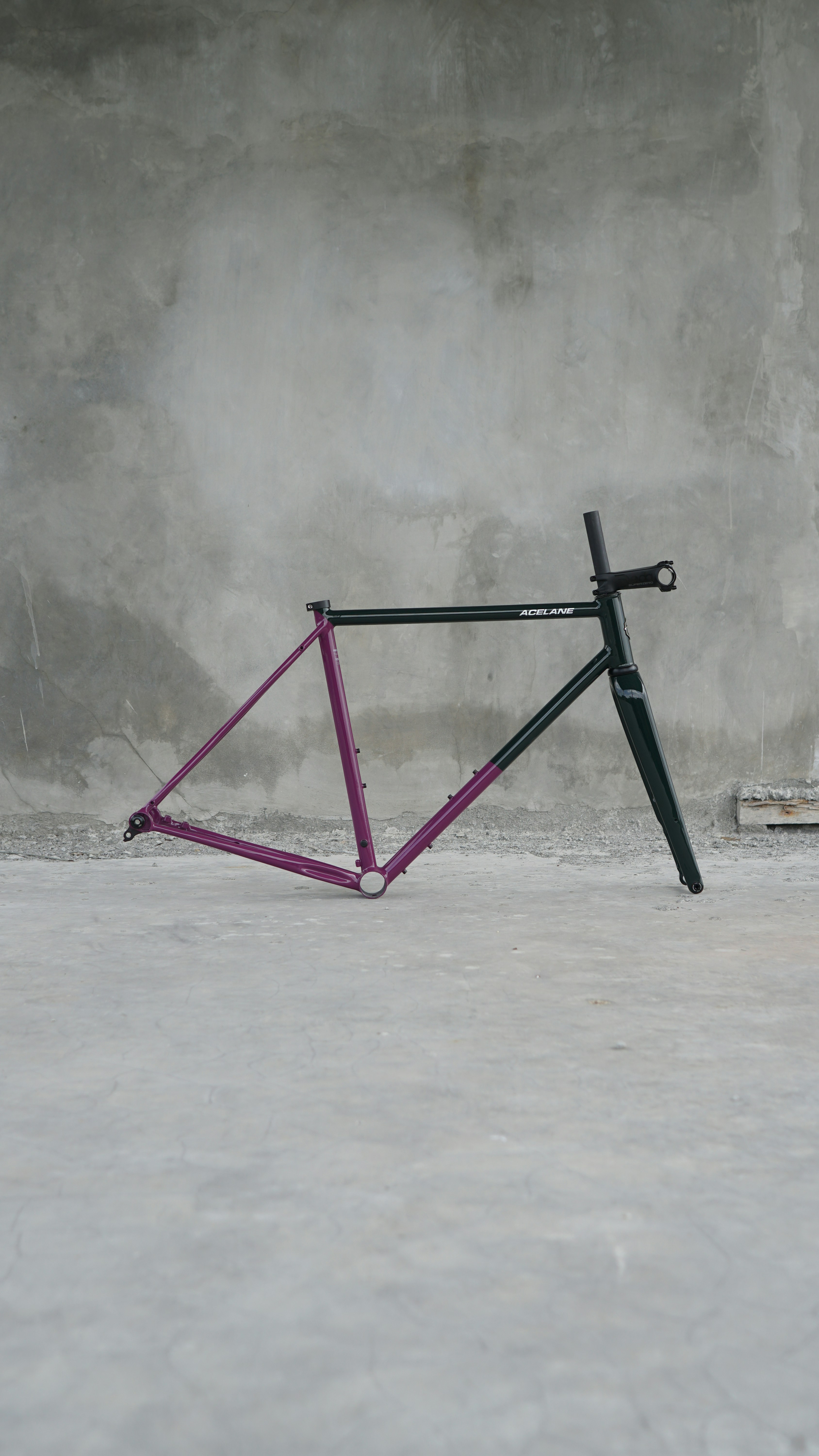

Fork options—Our Road fork (700x32 max tyre), All road fork (700x40 max tyre, fender mount), or Gravel Adventure fork (700x50 max tyre, triple side mount, fender mount, dynamo/front light combo mount), tapered steer tube, ISO 4120 tested

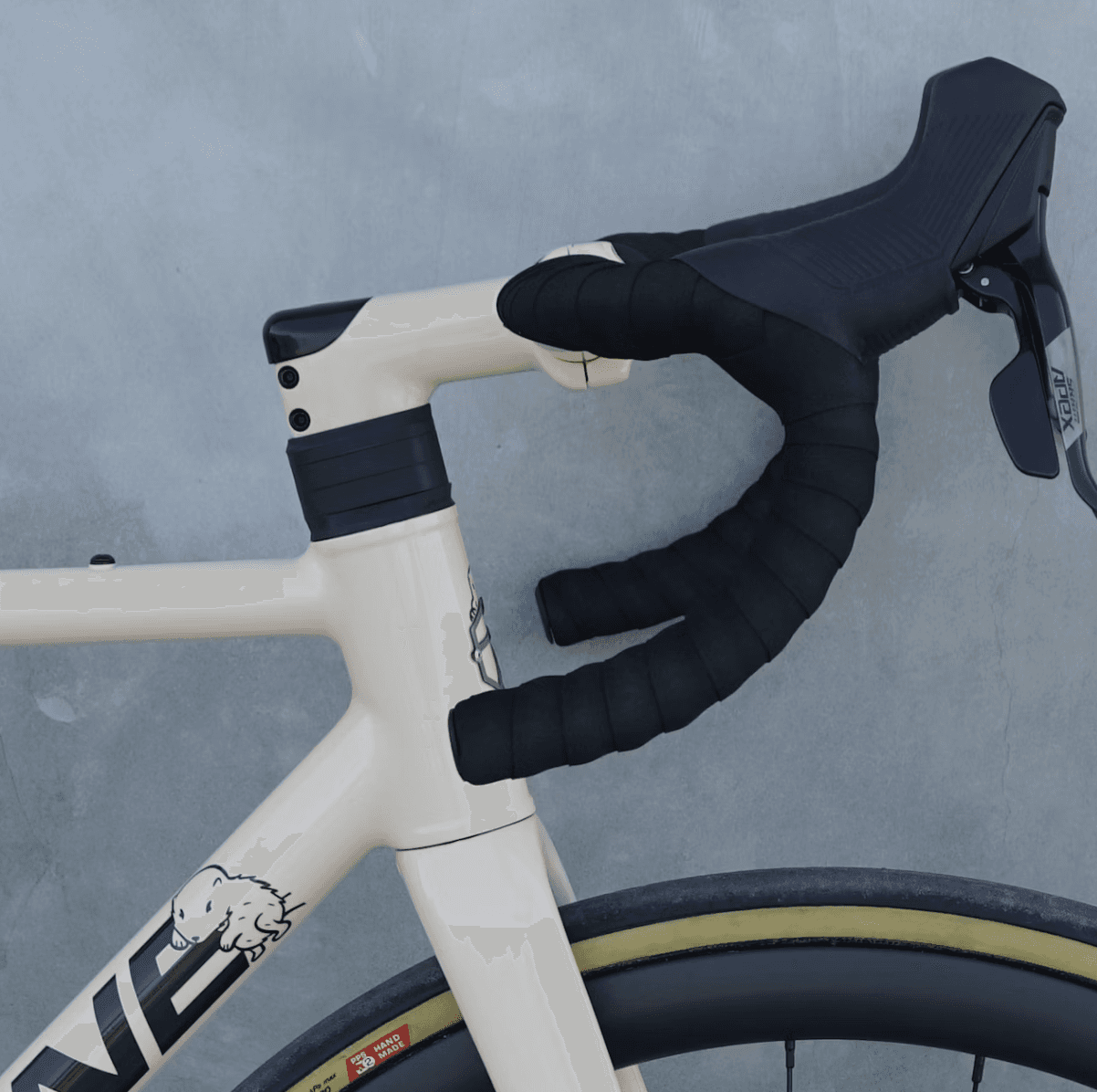

Head tube options—Semi internal cable routing with ⌀46mm head tube OD (all cable through down tube) or hidden integrated cable routing with ⌀56mm head tube OD (all cable through bar and stem) are free to choose
Mechanical/electronic (Di2/AXS/EPS) drivetrain compatible
Headset bearings (headset size depends on your cabling management configuration and head tube size)

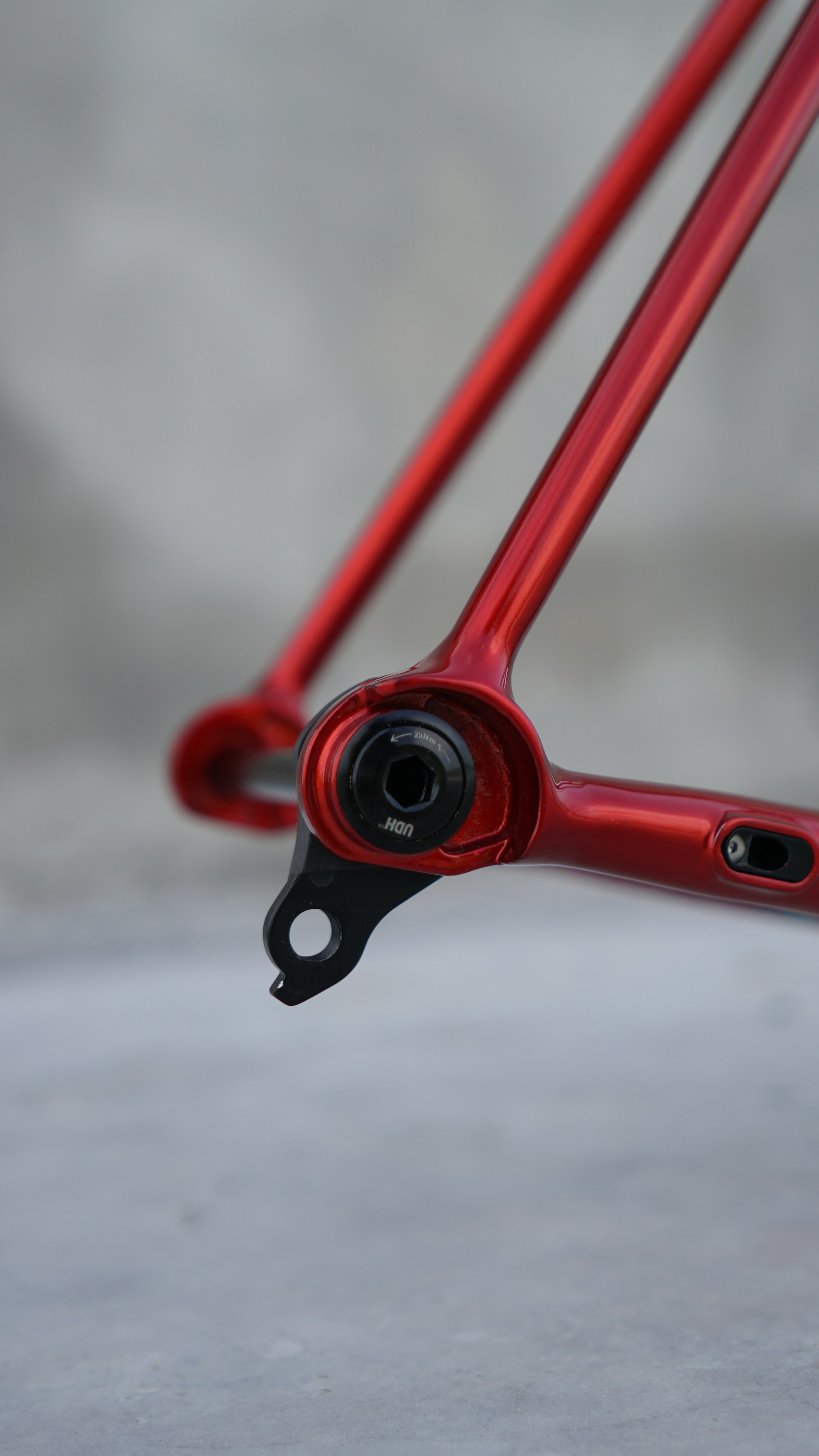

UDH T-Type compatible dropouts
Cable guide and stopper set (depends on the build config)
1x UDH™️ rear derailleur hanger
2x M12 thru axle (front and rear)
Clamp/brazed-on front derailleur mount options
Minimal paint scheme
1 years fork warranty, Life time support, and 180 days Frame Crash Protection for 30% off frames repair and tubing replacement/rebuild (repaint excluded)
Upgrade parts and add-ons with additional charges*

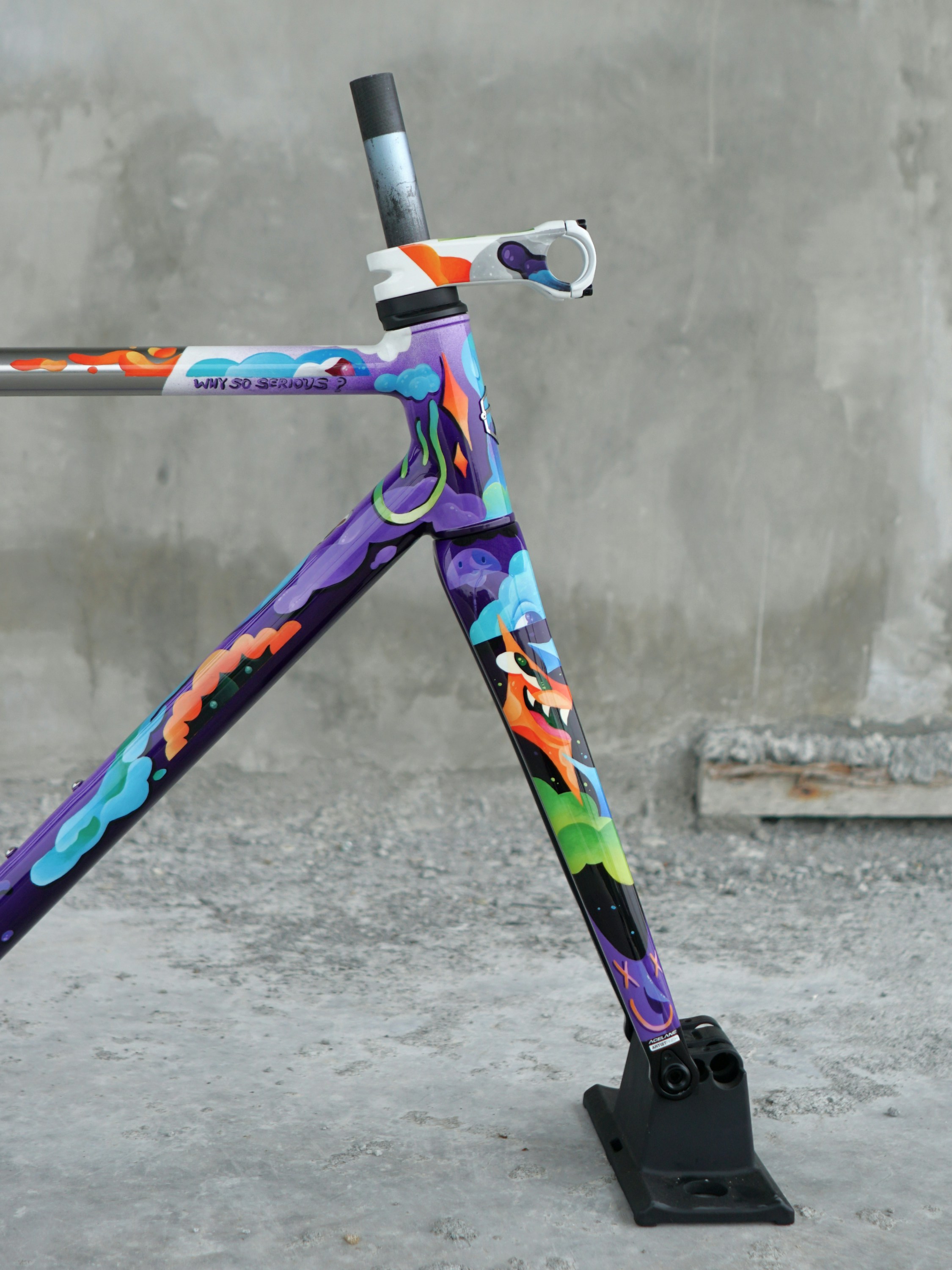

Custom paint in custom prices
Columbus Futura Trefoil Trittico fork (700x32 max tyre)**
EXS FK-00 31.8 fork (700x32 max tyre)**
Deda Elementi GERA EDG fork (700x45 max tyre)**
ENVE AR In Route integrated fork (700x38 max tyre)***
ENVE Aeroset headset (for ENVE In route stem only)***
Chris King headset and bottom bracket
EXS Aerover integrated handlebar/stem
ENVE In-route SES AR handlebar/stem
NOTES:
*) Please contact us for detail price and availability
**) This fork optimized for slimmer (⌀46-56mm tapered IS42/IS52 headset/straight ⌀46mm ZS/EC44 headset) head tube profile, electronic group set and hidden internal cable routing only.
***) Only for full integrated cable routing build option
Minimal color paint included
+1000 RAL swatches option are ready to choose, gloss finish with black/white frame decals. Raw unpainted gloss finish exclusive for stainless build only
Go to RAL color library here ->
Unpainted, gloss (stainless only)
RAL gemeinnützige GmbH Germany
©All rights reserved
6 month lead time
Secure your build with 50% deposit for next batch schedule
OUR PRODUCTION CALENDAR ->
FREE WORLDWIDE DELIVERY
Hassle free for international order with included shipping charges
Read more →
STEEL TUBING
ZONA TUBES
MADE IN ITALY
LIFE/SPIRIT TUBES
MADE IN ITALY
725/853 TUBES
MADE IN ENGLAND
STAINLESS TUBING
MS3 STAINLESS STEEL
MADE IN USA
XCr SEAMLESS STAINLESS STEEL
MADE IN ITALY
TITANIUM TUBING
GRADE 9 SEAMLESS TITANIUM
HYDRO FORMED BUTTED TUBES
