/Rei—ziger/
it means traveller in Holland, and as the name suggest this bikes is born, crafted, and ride for that purpose
It is a machine meant to disappear beneath the rider, leaving only the rhythm of the ride and the landscape ahead.
Details build and specification
FRAME SET BUILD
Inside the box

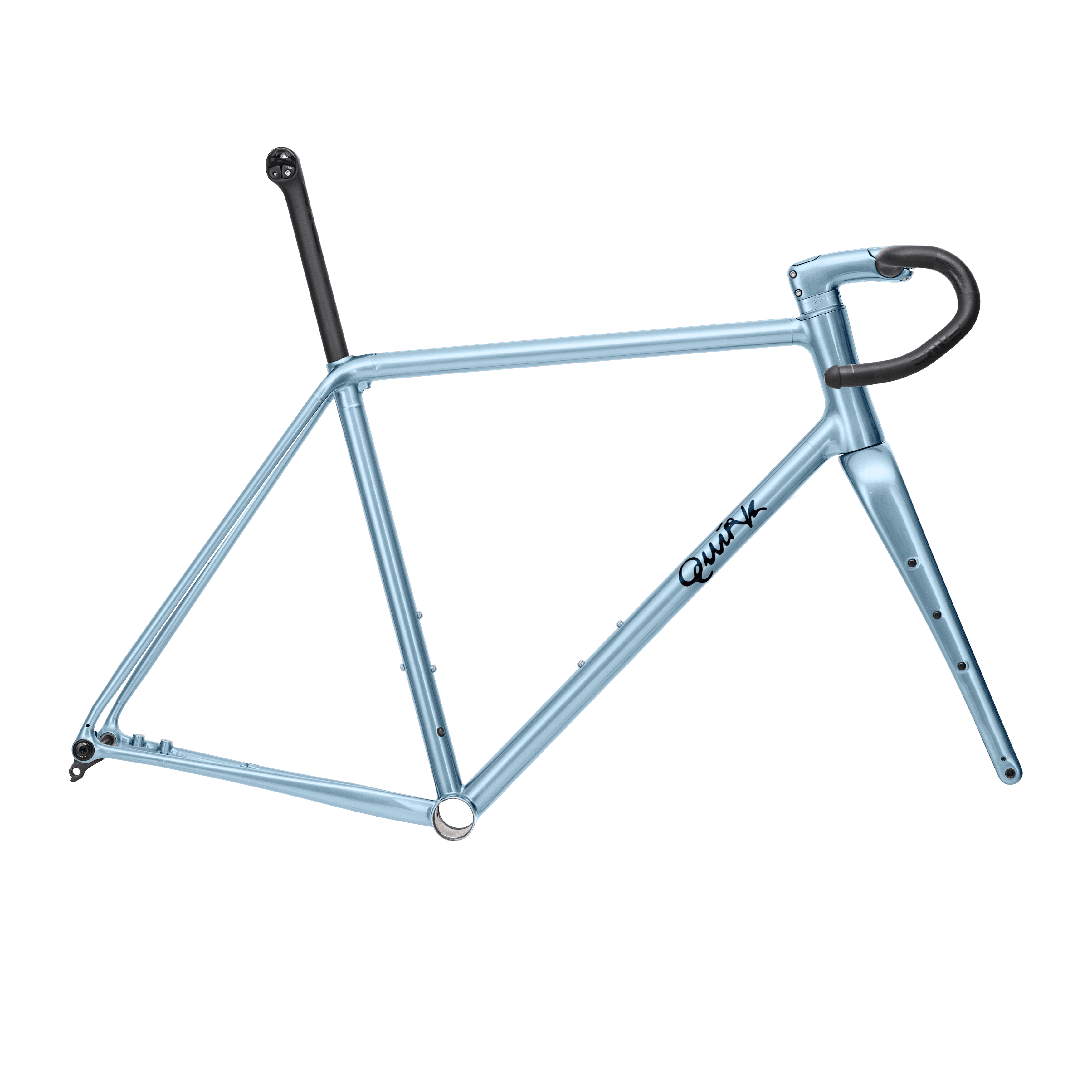

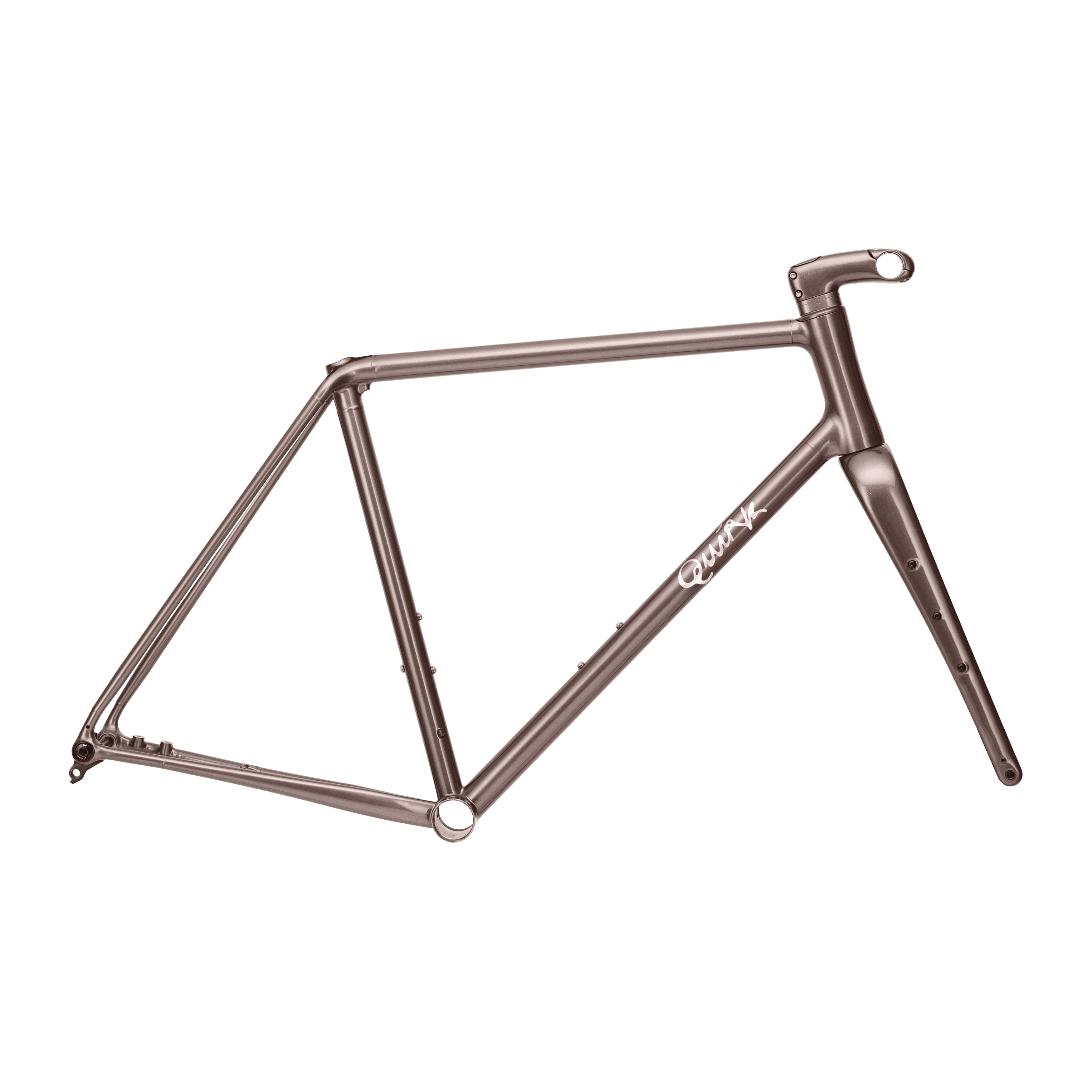

Reiziger frame and fork
Headset
1x thru axle (front and rear)
1x UDH hanger
1x seat post clamp ⌀31.8mm
1x front mech hanger ⌀31.8mm
Frame weight: ±1.85kg, size 54
FRAME

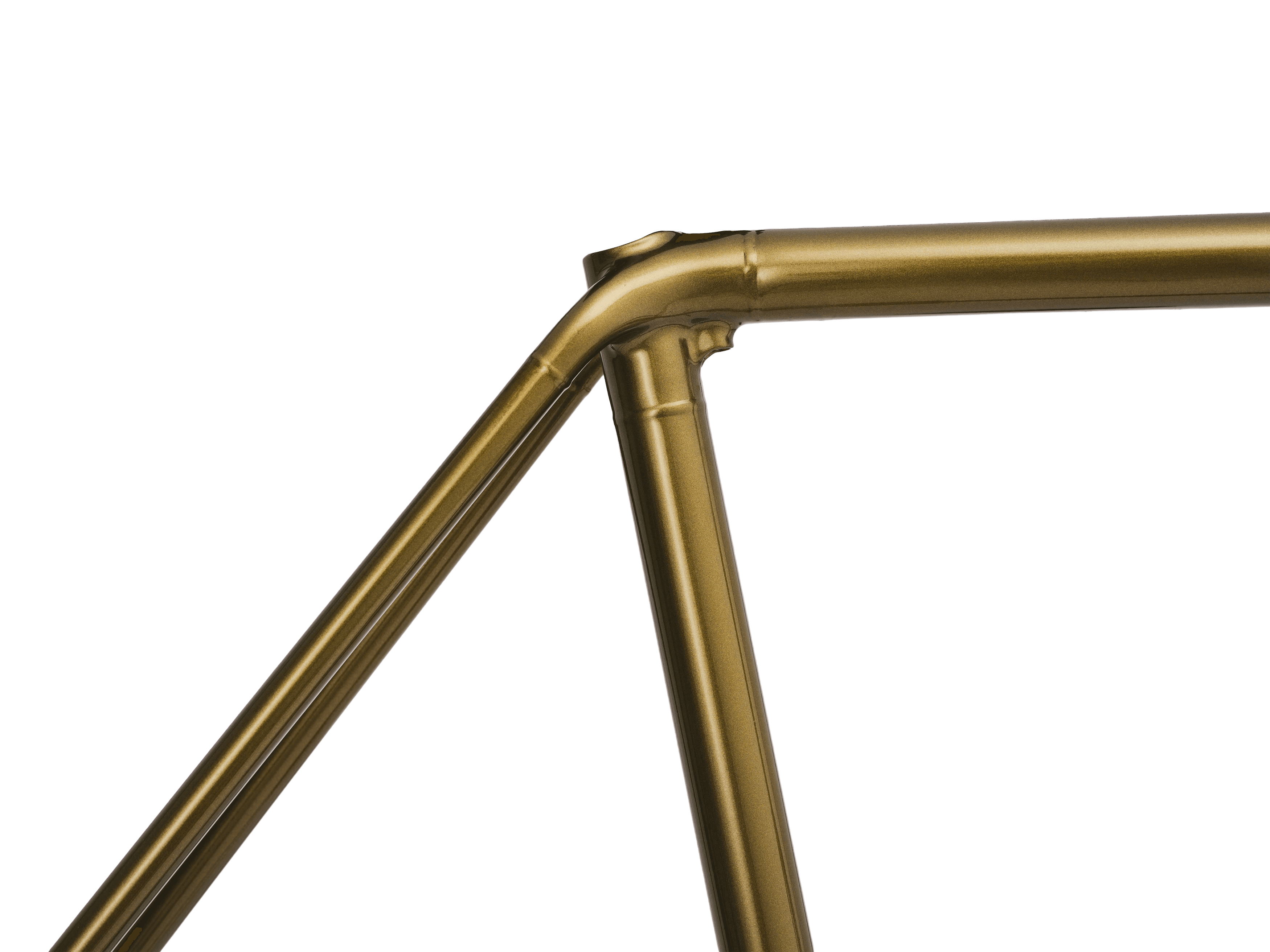

Selected Columbus and 4130 steel tube. Hand made in Yogyakarta, Indonesia
FORK
Gravel adventure full carbon fork Toray T700, ISO 4210 tested, side mount cage, dynamo cable access, full internal cable routing, 50mm rake, 1.1/2"-1.1/8" tapered steerer
TYRE CLEARANCE
29x1.9"/700x48mm max measured (without fender, depends on rims and tyre combinations)
COMPATIBILITY
Shimano and SRAM electronic and mechanical groupsets
Round chainsets max size 52-36T (double chainring), 42T (single chainring)
T47 threaded outboard bottom bracket, 86mm width
15mm slide adjustment rear dropout (420/435mm chain stay length)
UDH and Transmission direct mount compatible
Front mech ⌀31.8mm band-on
Seatpost ⌀27.2mm
Seatpost clamp ⌀31.8mm band-on
Flat mount disc brakes, rear ⌀160mm max, front 180mm max
IS52/IS52 headset (⌀51.8mm bearing)
MOUNTING POINT
2x water bottle (down tube and seat tube)
1x bento box (top tube) mounting
1x lower down tube
Rear rack and full size fender (on the frame and carbon fork)
Front light dynamo on the fork
WHEELS AXLE
12mm thru axle, OLD 12 x 142mm rear/12 x 100mm front,
Axle length 120x1.5mm thread pitch (front), 170x1.0mm thread pitch (rear)
SYSTEM WEIGHT
Max 120kg total weight (incl. bike, rider, and any luggage)
Generous mounting options
For pannier, fender and more
Massive tyre clearance options
Up to 29"x2.0" (1x chainring)
Stock size guide
ENHANCED ENDURANCE GEOMETRY
More comfort with higher stack, confident handling and optimized to ride on low and drops
48
150-162cm
50
158-170cm
52
168-178cm
54
175-187cm
55
175-187cm
57
185-195cm
59
>192cm
FRAME GEOMETRY CHART ->
Proven endurance geometry
Our stock size is designed with accessibility in mind, comes with shorter frame reach and relatively higher stack and head tube—this tend to upright relax zone and more flexible to tune the fit with your preferences

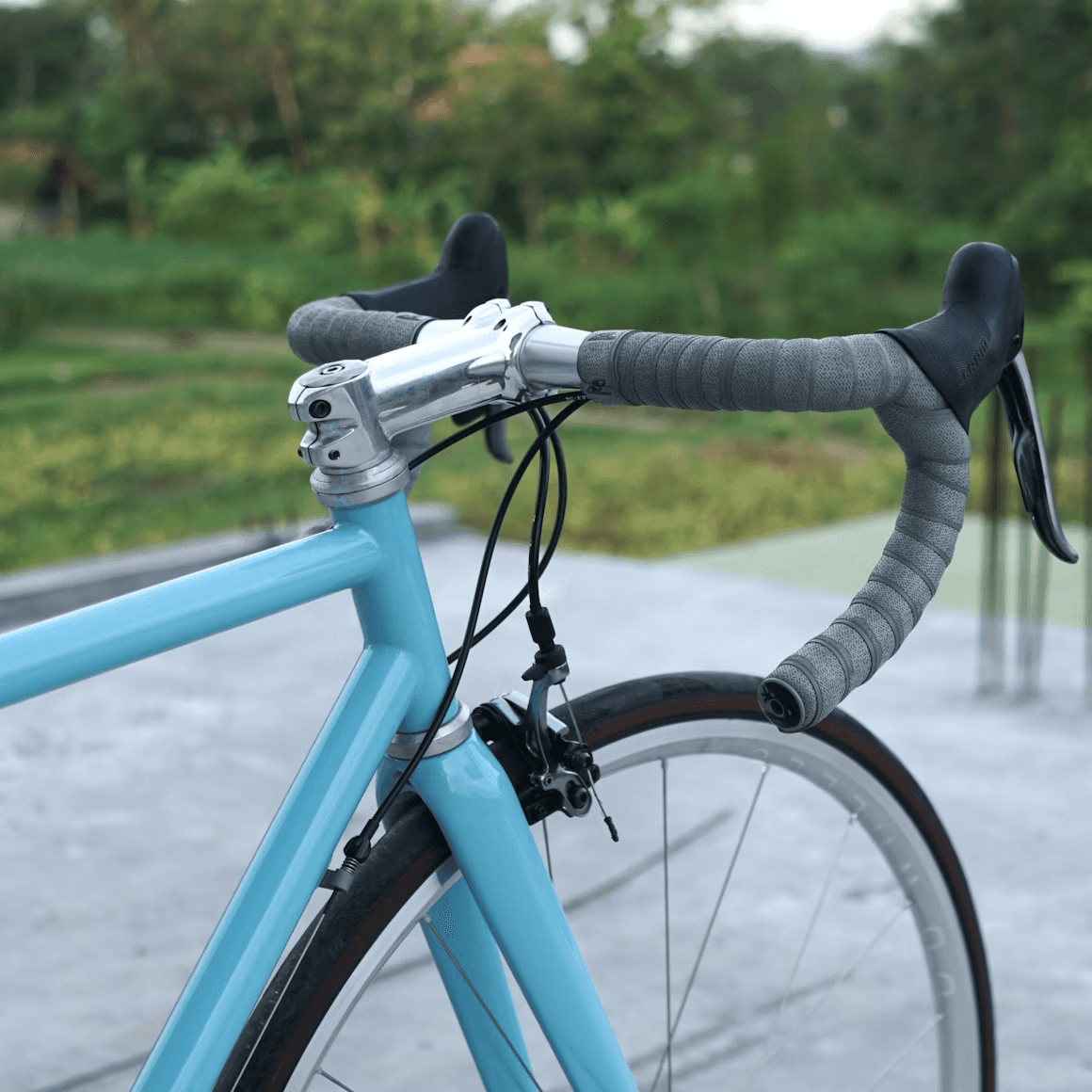

You can use slightly longer yet lower stem with less spacer possible. More predictable handling and gain more control closer to center of gravity of your bikes
It might not for everyone but aesthetic wise, who doesn't like the looks of long stem?
BEEN TESTED AND RACE ON
2024
Bentang Jawa
RODE BY T.ISLAHUDIN
Replacement
parts
Universal Derailleur Hanger dropout hanger ->
IDR 450.000
12x142mm Rear thru axle
IDR 190.000 (170mm total length, 1.0mm pitch)
IS52 Internal routing headset bearing kit ->
IDR 450.000
Alloy dropout slider insert set ->
IDR 1.800.000 (pair, 6pcs M6 bolt)
Clip cable guide kit ->
IDR 40.000 (4 pcs)
2 hole Internal cable portal kit ->
IDR 80.000 (1 pcs, 1x M3 bolt)
1x FREE REPLACEMENT DURING WARRANTY PERIOD
Eligible for original owner only. Contact us for inquiry and order the parts
SPECIAL OFFER FOR FULL BIKE BUILD
Just get ride, soon
Excited to ride your bike sooner in your local trails?
Worry not! we will help build yours all down to the components, parts, accessories and budget that fit your desired specs and riding needs from renowned brand.
CUSTOM SPEC FROM OUR CURATED BRAND ->
